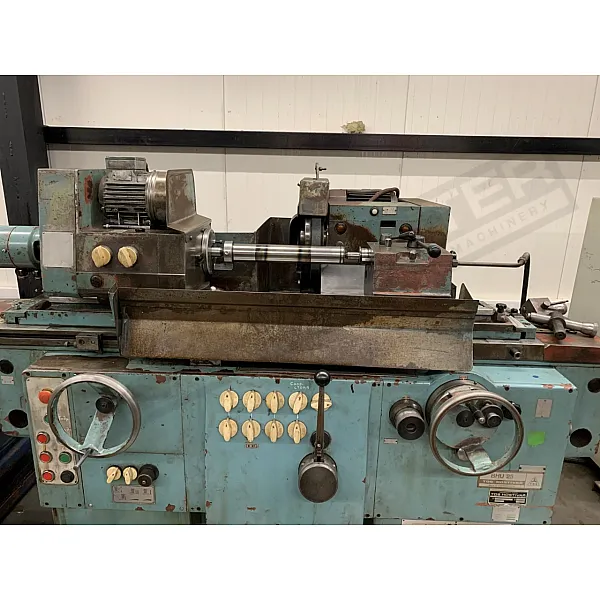

Cylindrical grinding machine TOS BHU25, used

The TOS BHU25 cylindrical grinder, used, is professional equipment for grinding cylindrical surfaces.

Price: $4,000 (negotiable, exchange for agricultural products)
For details, call: (067) 362 57 78

Specifications:
1. Maximum machining diameter, mm – 280
2. Distance between centers, mm – 630
3. Maximum workpiece weight, kg – 60
4. Grinding wheel (Diameter/Width/Bore), mm – 400/40/127
5. Rear quill taper – Morse 3
6. Workpiece quill taper – Morse 4
7. Workpiece quill rotation angle, deg – 90
8. Table rotation angle, deg – +-8.5
9. Grinding quill rotation angle, deg – +-60
10. Maximum longitudinal table travel, mm – 760
11. Transverse travel of the grinding dragonfly, mm – 245
12. Grinding dragonfly motor power, kW – 4
13. Total machine power, kW – 7.5
14. Overall dimensions (length x height x depth), mm – 2760x1400x760
15. Total machine weight, kg – 2300
