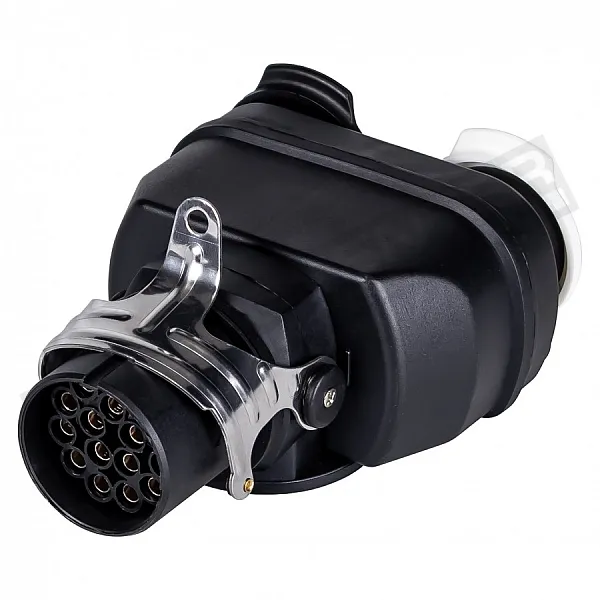

Adapter 24V 15/2x7 (E1280-A)

The E1280-A adapter is a reliable and convenient solution for connecting a tractor to a semi-trailer or trailer, which provides full transmission of electrical signals of the lighting and braking system. Suitable for vehicles with a 24 V electrical system.

Specifications:
✔ Connection type: 15-pin - 2x7-pin (S + N)
✔ Supply voltage: 24 V
✔ Color: black
✔ Weight: 520 g
✔ Plug dimensions: 157×121 mm

Purpose:
✔ Provides a stable connection between the electrical systems of the tractor and trailer
✔ Transmits signals of lighting, braking, reversing, parking lights, etc.

Function distribution by connectors:

15-pin - 7-pin N:

1) Ground - common for contacts 1–3, 5–12
2) Left side marker
3) Left turn
4) Stop light
5) Right turn
6) Right side marker
7) Brake wear indicator

15-pin - 7-pin S:

1) Ground - common for contacts 1–3, 5–12
2) Brake light
3) Reverse light
4) Constant +24V
5) Lifting axle
6) Constant +24V (additional)
7) Fog light

Pin distribution:

1) Left turn signal
2) Right turn signal
3) Fog light
4) Ground (–) for pins 1–3, 5–12
5) Left side marker (position)
6) Right clearance (position)
7) Stop light
8) Reverse light
9) Constant +24V
10) Brake wear indicator
11) Parking brake signal
12) Lifting axle
13) Ground (–) for pins 14, 15
14) CAN H (not for EBS or ABS)
15) CAN L (not for EBS or ABS)

This adapter is an indispensable accessory for commercial vehicles, allowing you to quickly and safely connect a trailer regardless of the type of its electrical system.
