Appointment

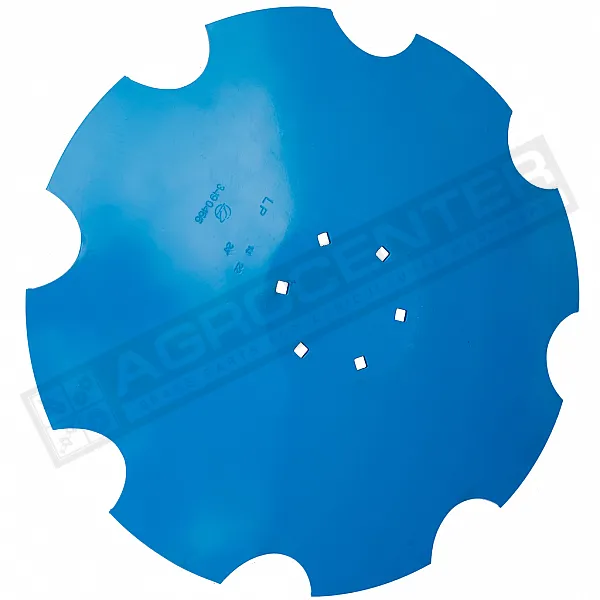

The toothed wheels 349 0466 are used in RUBIN Lemken's short disc harrows.
The size 620x6mm, has square holes of 13x13 mm - mounted to the axis of 4550300 or 4550301.
Fitting the toothed disk 3490466 to the axes 4550300,4550301:
Bolt 301 1806 (M12x30-10.9) - 6pcs
Nut 303 0934 (DIN985-NM12-8 Zn) - 6 pcs
Characteristics
| Number of mounting holes | mm | 6 |
|---|---|---|
| Thickness | mm | 6,00 |
| Sizes of mounting holes | mm | 13х13 |
| Outer diameter, D | mm | 620,00 |
